puttymix: Metering and mixing 2K putty materials
For perfect surface protection of rotorblades
The finishing process of rotor blades has become more and more important based on the increasing blade lengths. To protect the surface of the rotor blade particularly well, small unevennesses are filled with putty material at the end of the production process. Based on decades of experience in metering and mixing a wide variety of materials, DOPAG has developed a specific system, the puttymix, which perfectly meters and mixes the two-component putty material with its high viscosity variance. An optional high speed injection of an accelerator using needle metering valves is possible. In addition, the metering and mixing system can be used to apply pore fillers.
- Learn more about the putty application
Standard
-

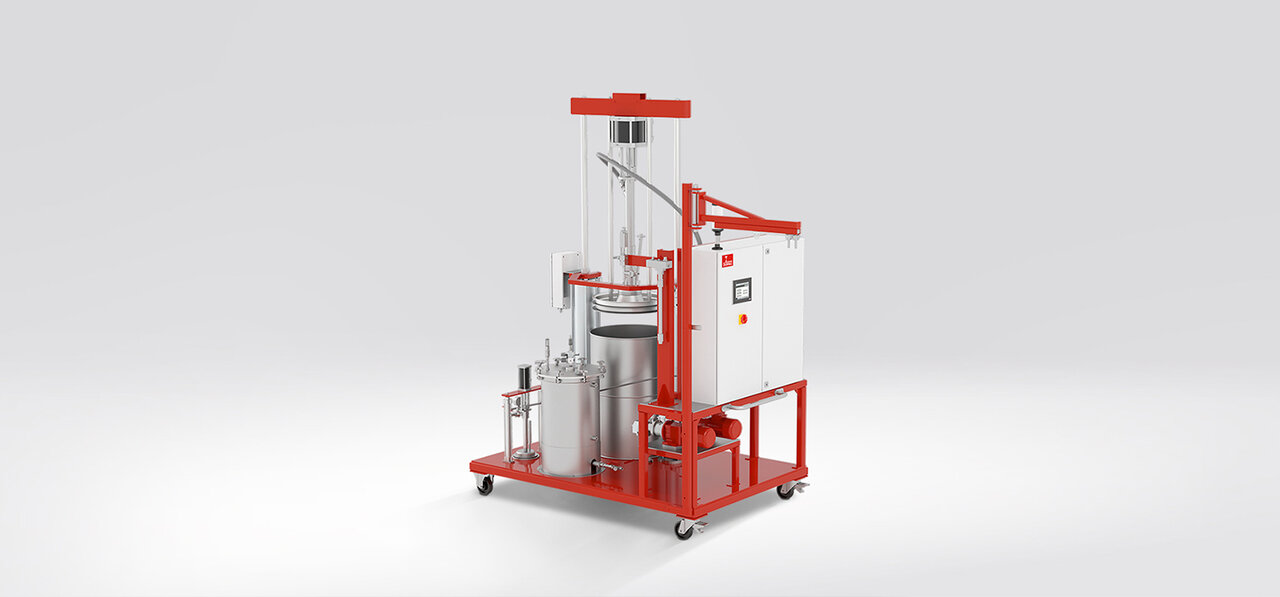

Control cabinet and material supply mounted onto a mobile chassis
-
On chassis 200 kg direct feeding for A-component
-
Material pressure vessel for B-component with level control monitoring
-
Specially abrasive resistant coated gear pump for A-component
-
Control and regulation of mixing ratio by use of high resolution volume counters
-
Balancer to handle the manual mixing gun mounted on the chassis
-
Emergency backup of control parameters in case of a power failure
Optional
-
2K with accelerator
-
Metering pump of the B-component with magnetic coupling
-
Automatic refilling for B-component
-
Electrical heating system
-
Cabinet cooling
-
Hose and cable reel system
-
On board- compressor
-
Remote monitoring and analytics with production reports
-
Remote diagnostics
Technical specifications
- Flow rate
1 – 2.6 l/min (approx. 1.5 – 4 kg/min)
Depending on mixing ratio and viscosity - Mixing ratio
100:10 – 100:100, volumetric as per material properties
- Material supply
Drum pump, pressure vessels
- Viscosity range
100 mPas – 80.000 mPas
- Material characteristics
Unfilled, filled, abrasive
- Power supply
3 × 400 V / 50 Hz
- Air supply
6 bar
- Dimensions L × W × H
2.500 × 1.100 × 4.100 mm
- Weight
Approx. 1.500 kg
